The ladder cable tray is primarily used to support and arrange cables in electrical wiring systems. Its unique stepped structure design makes it an ideal choice for cable support. It is characterized by its light weight, low cost, unique design, easy installation, good heat dissipation, and breathability.

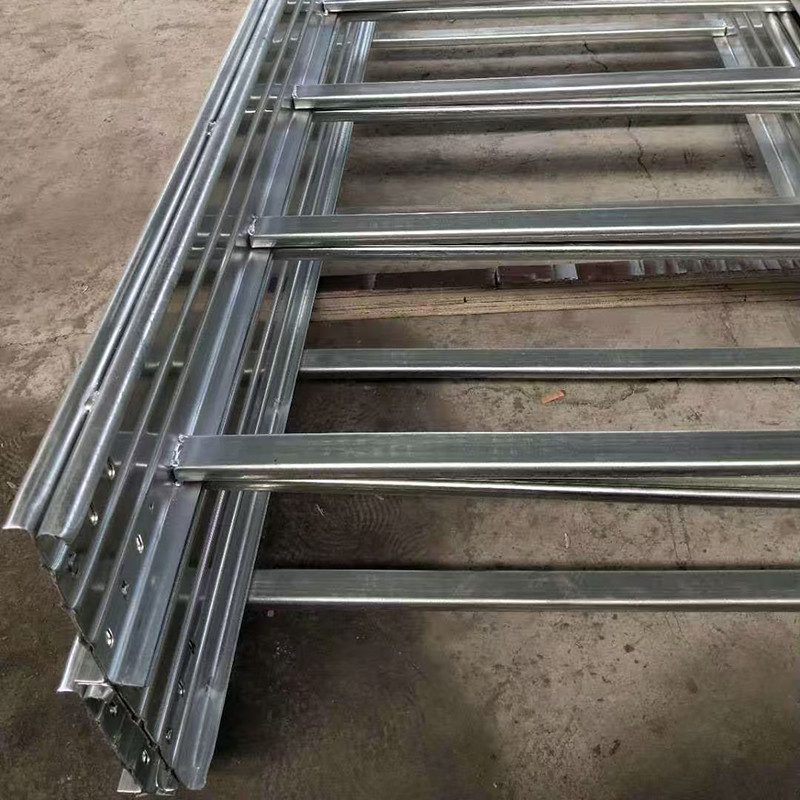

A typical ladder cable tray comprises side panels and bottom panels. The side panels are drawn and formed by a molding machine to improve the overall bending resistance of the cable tray. The side and bottom plates are reinforced with compression ribs, giving the tray an elegant look and high load capacity. The middle section of the cable tray is welded with horizontal bars that provide support for the cables placed on it.
A trapezoidal structure design is used in the construction of this cable support system. The design forms a sturdy support structure between the crossbeam and longitudinal beam, which has a high load-bearing capacity and can withstand heavy cable loads.
The open design of the system is excellent for ventilation and heat dissipation. This feature effectively reduces cable temperature and prevents overheating. Ultimately, it ensures safe cable operation.
The system uses a modular design that is easy to install and adjust. Its open structure allows for convenient cable installation and maintenance. Additionally, the design of this system permits flexible cable routing, according to any specific application needs.
| Product Attribute | Technical Parameters |
| Product Name | Ladder Cable Tray System |
| Product Type | Cable Tray with Ladder Rungs |
| Material | Steel |
| Finish | Galvanized |
| Corrosion Resistance | High |
| Fire Resistance | Yes |
| Ventilation | Good |
| Maintenance | Low |
| Length | 3m-6m |
| Width | 50mm-1000mm |
| Height | 50mm-200mm |
| Installation Method | Wall-mounted |
The Ladder Type Cable Tray is ideal for both indoor and outdoor use, making it perfect for a wide range of applications. It can be used in commercial, industrial, and residential settings, and can be installed in buildings of all sizes. This product is perfect for use in data centers, hospitals, schools, and manufacturing facilities.
The Steel Ladder Cable Tray is designed to provide good ventilation, allowing air to circulate freely around cables. This helps to prevent the buildup of heat, which can damage sensitive equipment. Additionally, the low maintenance requirements of this product ensure that it is easy to clean and keep in good condition.
Product Packaging:
Shipping:
Q: What is the place of origin of the Ladder Type Cable Tray?
A: The Ladder Type Cable Tray is manufactured in Hebei, China.
Q: What is the certification of the Ladder Type Cable Tray?
A: The Ladder Type Cable Tray is certified with ISO9001.
Q: What is the minimum order quantity for the Ladder Type Cable Tray?
A: The minimum order quantity for the Ladder Type Cable Tray is negotiable.
Q: What is the price of the Ladder Type Cable Tray?
A: The price of the Ladder Type Cable Tray is negotiable.
Q: What are the packaging details and delivery time for the Ladder Type Cable Tray?
A: The packaging details for the Ladder Type Cable Tray are according to customer needs, and the delivery time is 15-30 work days.
Q: What are the payment terms for the Ladder Type Cable Tray?
A: The payment terms for the Ladder Type Cable Tray are TT.
|
|
